| Mould Material: S136 | Product Material: POM 90-44 |
| Cavity Number: 4CAV | System Of Runner: Cold Runner |
| Gate Type: Pin Gate | Lead Time: 40Days |
| Cycle Life: 500000shots | Mold Size: 250X300X310 |
| Injection Machine: 50Ton | Ejector Type: Ejector Pin |
| Accuracy of Gear: JGMA4 | Cycle Time: 28sec |

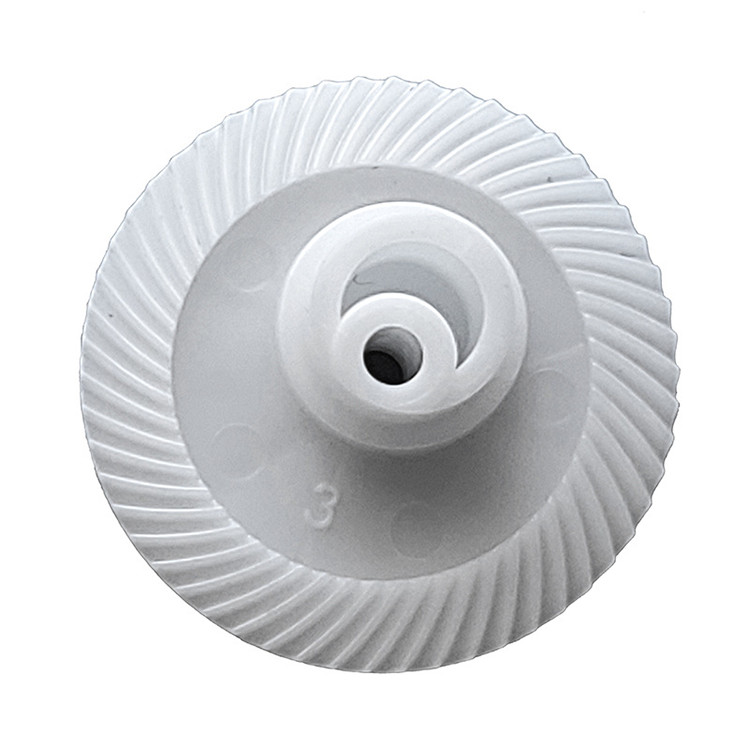

| Gear Type: Arc face gear | Qulity system: IATF16949 & ISO9001 |
| Technical specifications: Design engineer use gear software to make 3D,and use precision CNC to process mould components | |
Since 2002, Forwa has been producing high-quality in small and medium-sized precision injection mold with annual 600 sets.
The areas of application are
Forwa owned more than 35 precision process machines with famous brand, such as Makino CNC machining center ,Sodick EDM ,Okuma CNC, Funac electrode processing machines, +GF+ wire cut machine and so on. Over 70 tester equipments, for example, Mitutoyo CMM and Hexagon CMM, Osaka gear tester, Tesa height gage.
