| Mould Material: Assab 88 | Product Material: POM 90-44 |
| Cavity Number: 4CAV | System Of Runner: Cold Runner |
| Gate Type: Pin Gate | Lead Time: 50Days |
| Cycle Life: 500000shots | Mold Size: 250X300X310 |
| Injection Machine: 100Ton | Ejector Type: Mold core rotation |
| Accuracy of Gear: JGMA4 | Cycle Time: 38sec |

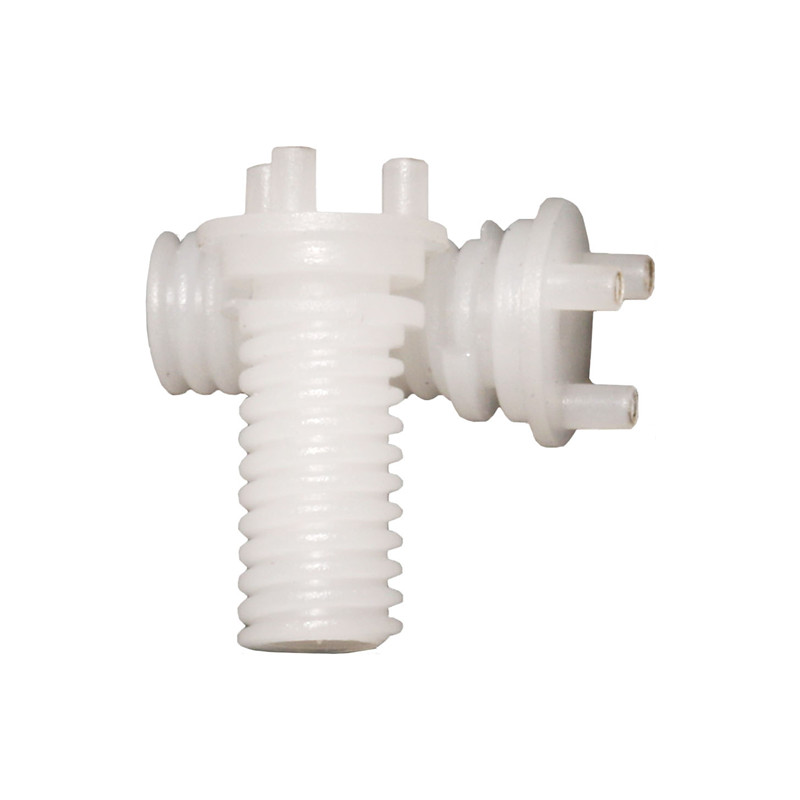

| Gear Type: Worm gear | Qulity system: IATF16949 & ISO9001 |
| Lead: 2.2mm | Worm gear teeth number: 1 |
| Worm helix direction: Right | Useage scenario: Head massaging apparatus |
Since 2002, Forwa has been producing high-quality in small and medium-sized precision injection mold with annual 600 sets.
The areas of application are
Forwa owned more than 35 precision process machines with famous brand, such as Makino CNC machining center ,Sodick EDM ,Okuma CNC, Funac electrode processing machines, +GF+ wire cut machine and so on. Over 70 tester equipments, for example, Mitutoyo CMM and Hexagon CMM, Osaka gear tester, Tesa height gage.
